V3 Carbon Mast 78 (us rail plate)

Mast for Pumping/Dockstart/Downwind/Surf Foil/Wing Foil Hawk V3 Carbon 78 cm, US Rail-compatible Plate
(Mast only, without fuselage or stabilizer) – compatible with all fuselages: Hawk, Rave, Ultimate, Titanium since 2014
Level: Intermediate to Expert

Appeler
From Monday to Thursday: 8 AM - 12 PM, 2 PM - 7 PM. Friday: 8 AM - 12 PM

Contact Devis

Appeler Mobile

Availability: In stock

1 149.00€ inc. tax

957.50€ excl. tax

  • Condition : new

ALPINE BOARD SURF SURFOIL FOIL supfoil wakefoil wingfoil CARBONE



New 2024 - DOCKSTART PUMPFOILING PUMPING SURF FOIL SUP DOWNWIND

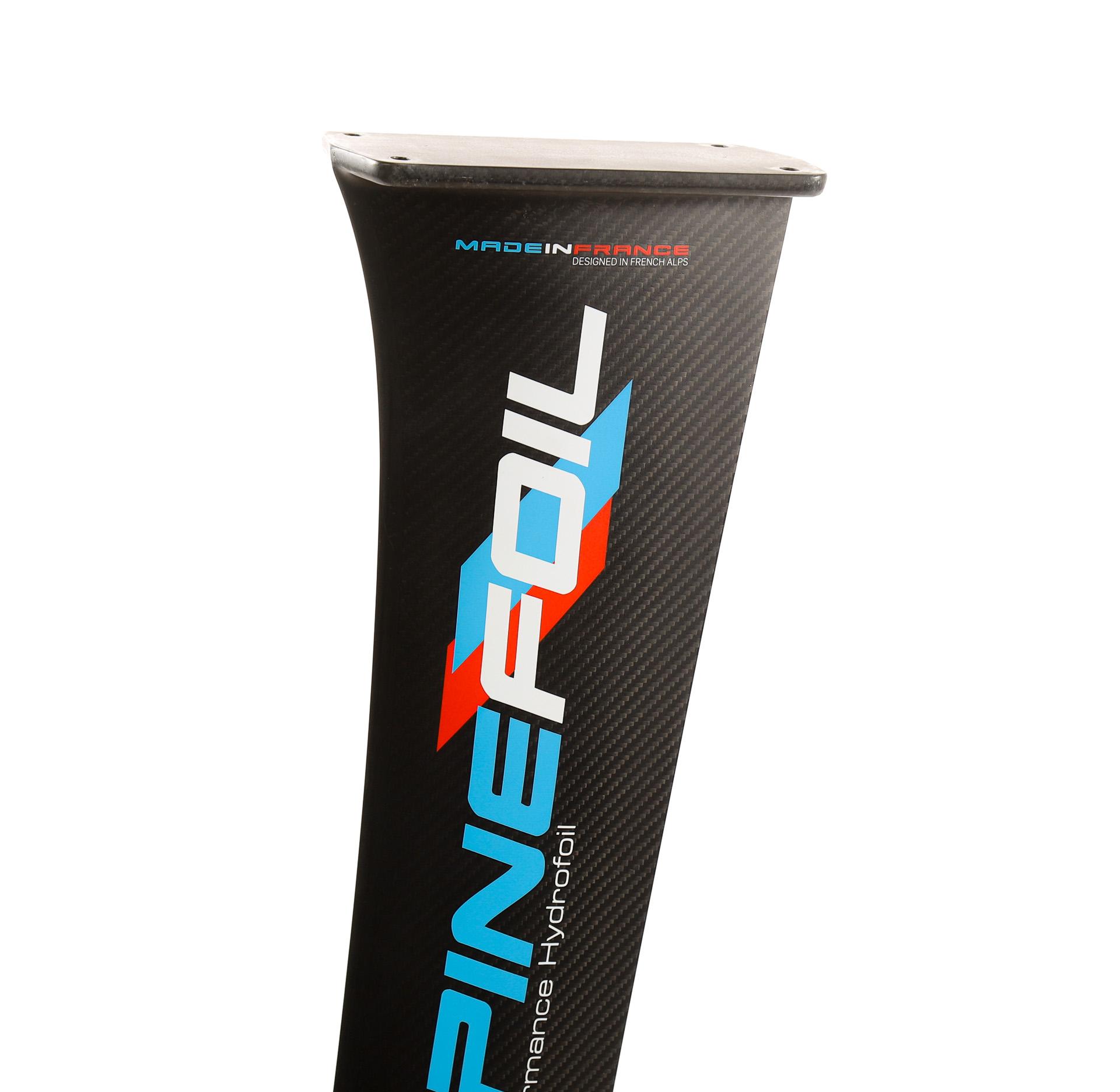

1920 dk1240 hawk v3 78 titane carbone 9226

1920 pumpfoilng alpinefoil frenchfoil 0388

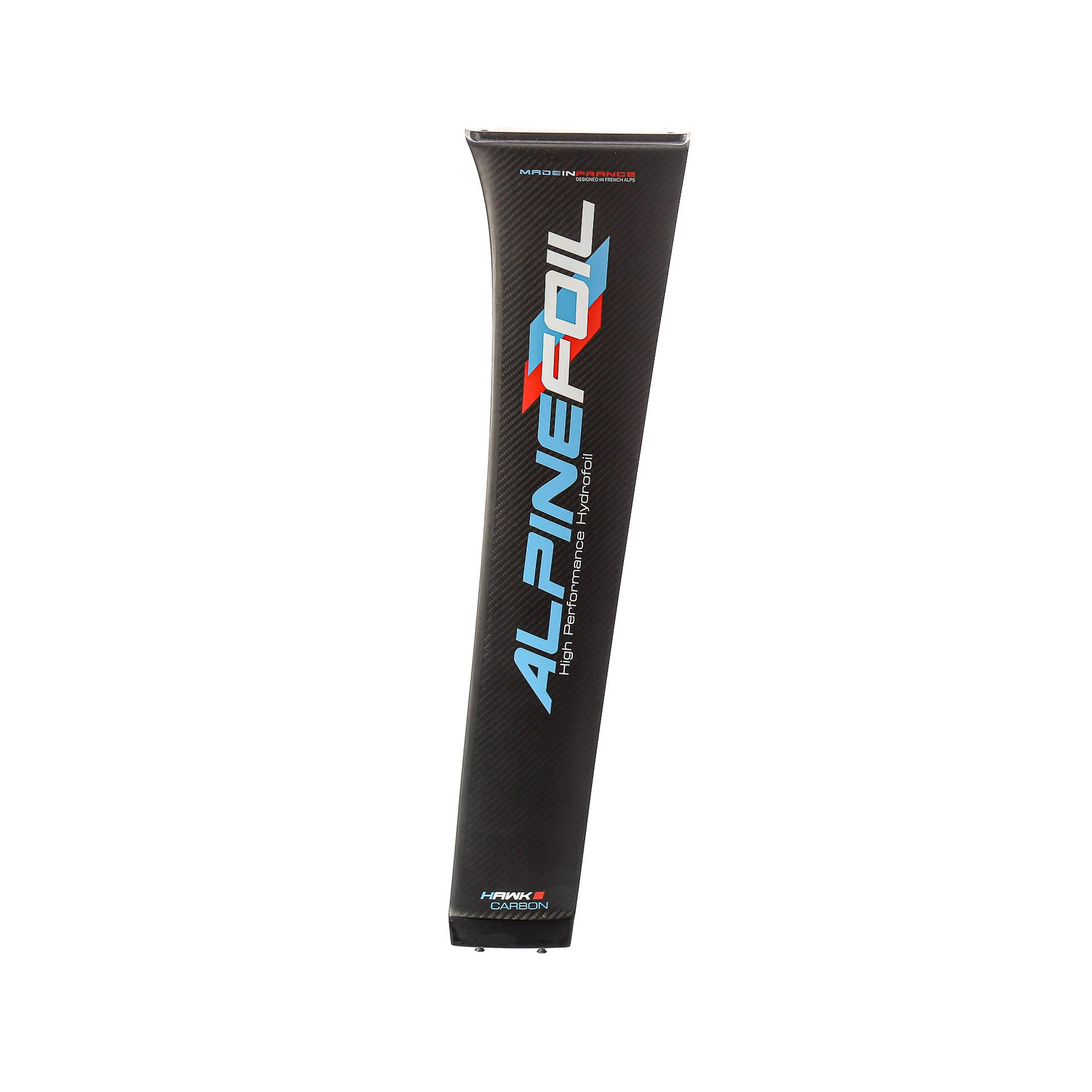

Carbon mast 78 cm, dockstart, pumpfoil, pumping, downwind, surfoil

Main Features:

  • Mast Length: 78 cm, also available in 86 cm and 95 cm.
    The 78 cm version is specifically designed for Dockstart, SUP Downwind, and Surf.
  • Thickness: 14 mm in the flow zone
  • Hydro Profile: HAWK V3
  • Material: Available in two carbon options:
    • HR High Resistance (identifiable by White/Orange sticker)
    • HM High Modulus (identifiable by Blue/Red/White sticker and UD High Modulus carbon band along the leading edge)
      38% increased stiffness between HR and HM versions, as measured on a test bench

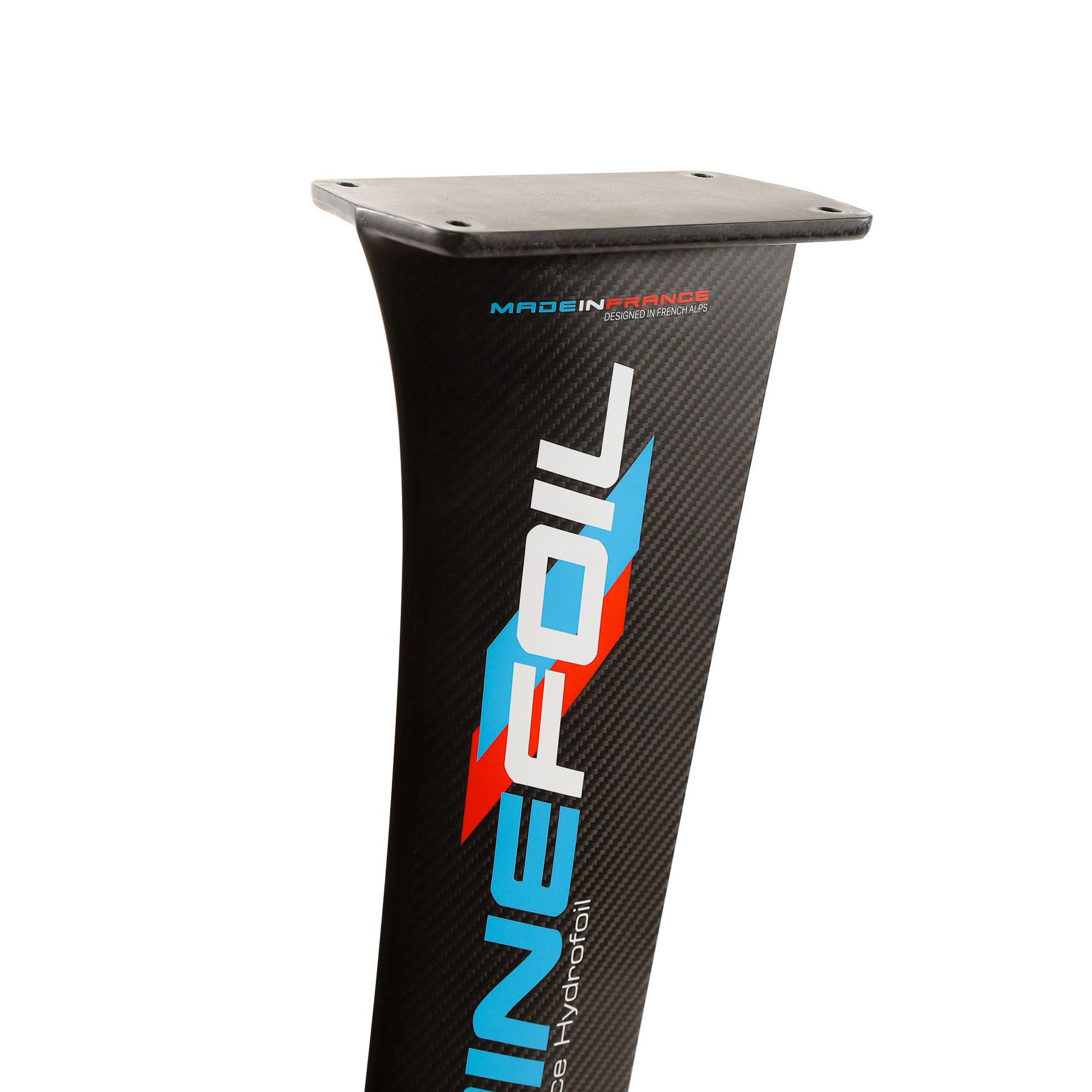

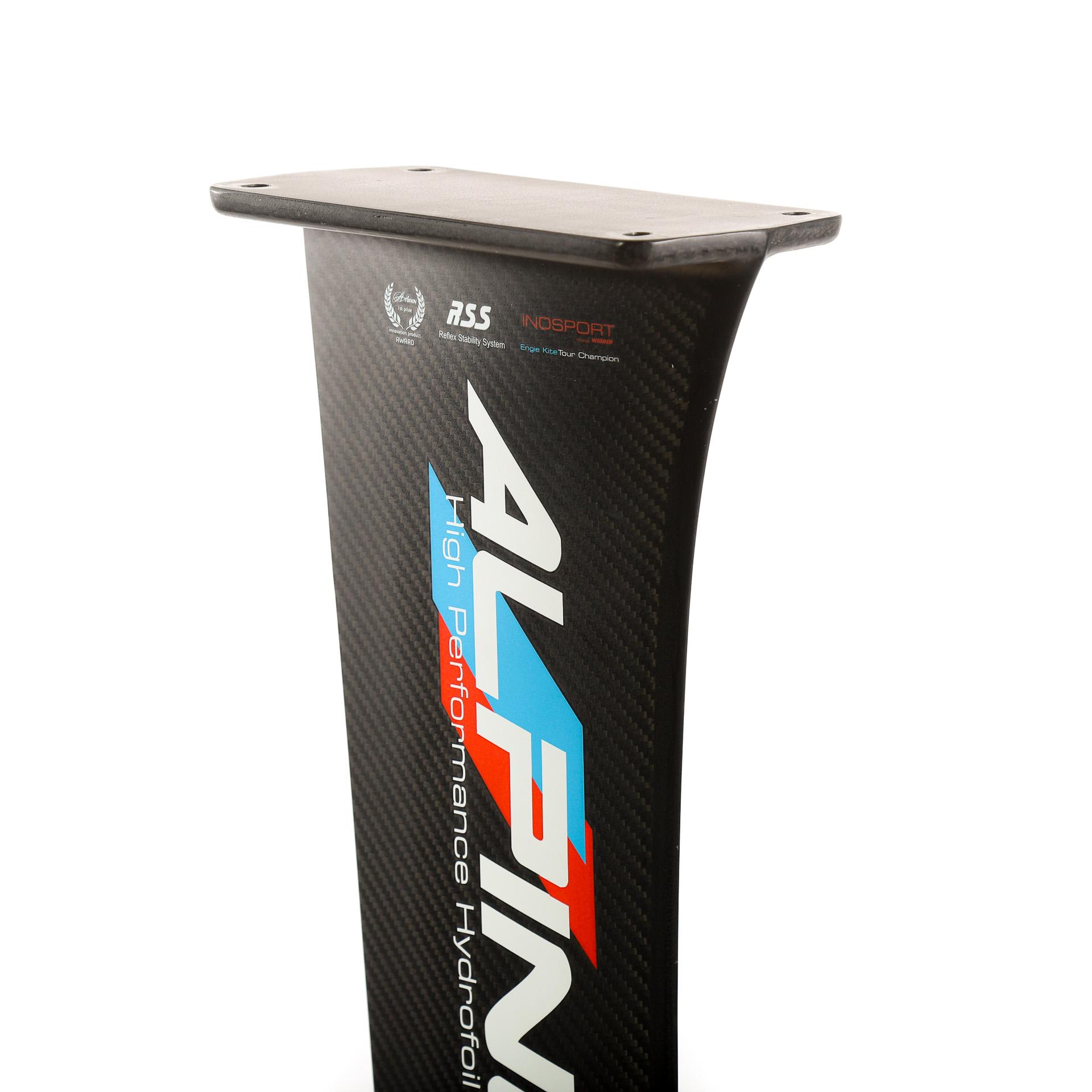

  • Monobloc Continuous Fiber Plate: Compatible with US Rails with standard spacing for easy installation
    • No fiber breaks between plate and mast
    • No bonding between housing and mast
    • No fiber break at the top of the plate
  • Fuselage: Machined in aviation-grade aluminum with sacrificial anode for enhanced corrosion resistance (inspired by marine applications) or titanium fuselage option
  • Compatibility: Fits all Alpinefoil wings since 2010
  • Wide selection of Wing Foil wings optimized for DW and RS wings
  • Compatible with Kite Foil/Surf foil/SUP foil/Foil Pumping/Dockstart/WakeFoil
  • Made in France (in the Alps since 2007)



Alpinefoil MCF (Monobloc Continuous Carbon Fiber) Technology:

  • The mast has a “4-Hole Plate” housing integrated directly within the mast fibers, making it lighter and stiffer than a standard mast with a glued-on plate.
  • S-Shape AlpineFoil Patent: The S-shaped anti-ventilation system advances the mast on the fuselage, preventing ventilation or stalling regardless of speed.
  • Advanced Fixing Point: The mast is positioned further forward on the fuselage, offering a more intuitive and natural turn initiation. When the foil begins a turn, it follows the curve naturally without pilot input, similar to the way a parabolic ski turns compared to a straight ski.
  • 3D Shape: The mast shape evolves along its entire length, with greater thickness near the housing for increased rigidity, while remaining slimmer (14 mm) near the fuselage for improved glide without compromising rigidity.

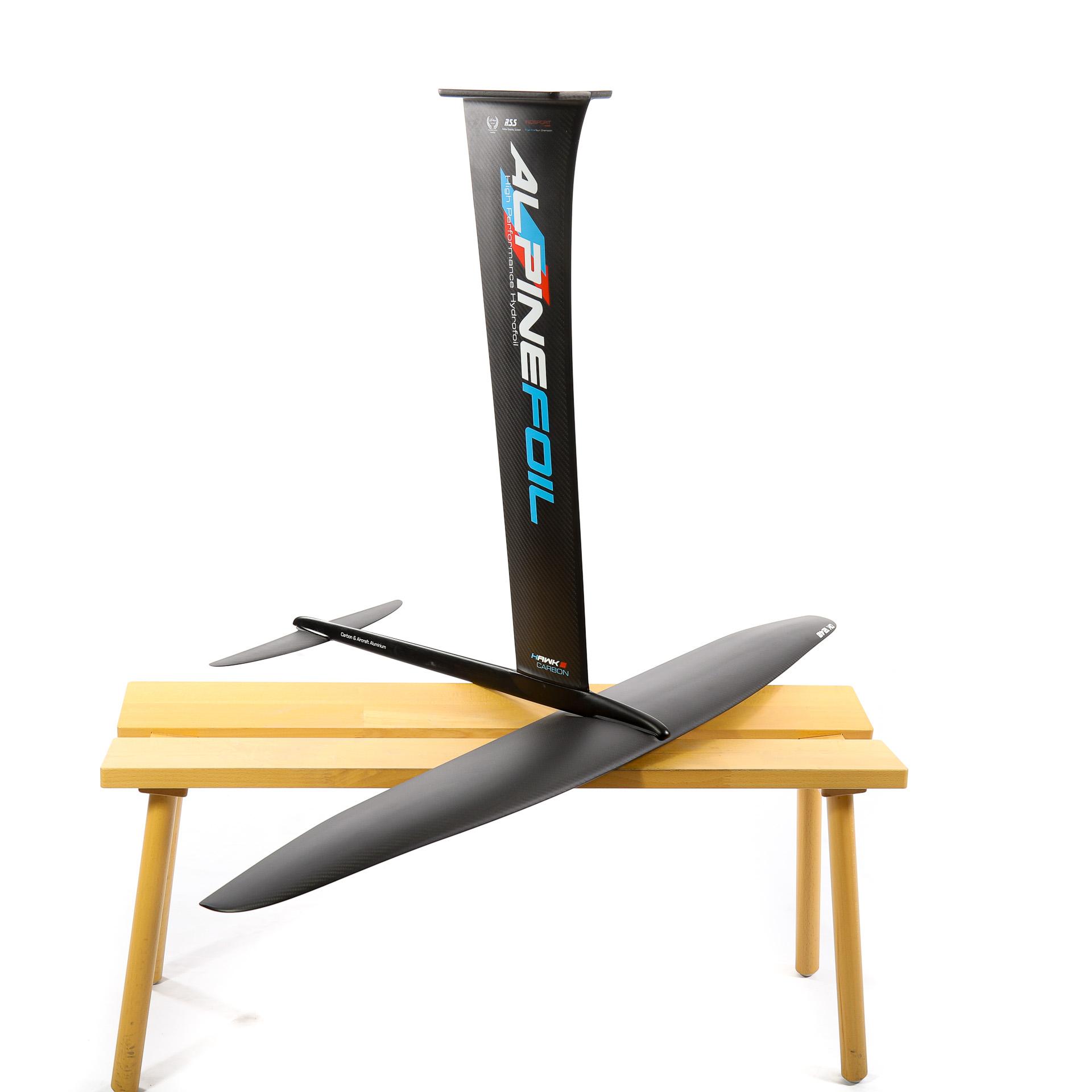

1920 dk1240 hawk v3 78 titane carbone 9222

High performance 78 cm mast for surfing , sup downwind and pumpfopiling

1920 pumpfoilng alpinefoil frenchfoil 0405
Wingfoil alpinefoil mat hawk 95 hm 9954
Wingfoil alpinefoil hawk v2 1 hm 0026
