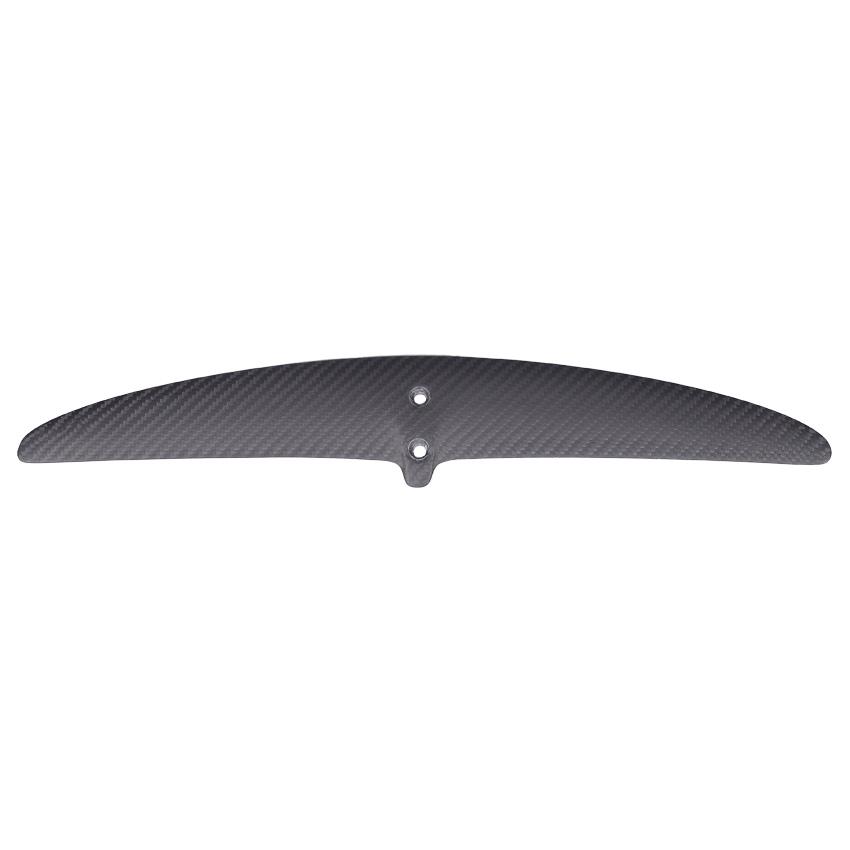

Check out SHA 188 (Super High Aspect) Stabilizer:
the SHA dedicated WIngfoil and WIndfoil stabilizers exist in two surfaces 188 cm2 and 239 cm2
Program: Carving, Speed, Performance, Race
This new High Performance Stabilizer enhances the range of Alpinefoil HA (High Aspect) wings such as Regatas (580, 850 & 1100) or Cruises (1250 & 1450) by pushing them to the maximum of their capacities in terms of top speed , performance and maneuverability.
The flat arch of this stabilizer is inspired by aeronautics and addicted planes, to promote yaw and increase carving release,
The Aspect Ratio is qualified as SHA Super High Aspect with an Aspect Ratio of 11.2
this very high ratio makes it possible to reduce the drag on the extremities of the vortices and to considerably increase the efficiency. this is what we find in particular on competition gliders
This improved performance is felt in several ways:
The extension of the foil in the transitions (jibe in particular) is improved the foil planes even more
In terms of pumping, the foil returns more energy, the foil slides more and we manage to maintain flight even better with less fatigue.
the VMax is unbridled, we feel that the foil still wants to accelerate and we manage to gain a few more small knots without forcing too much (recently I was able to cross 23.9 knots in Wingfoil with an average over 10 seconds at 23.4 knots, it was with the Regata 850 on Lake Monteynard, the lake is unfortunately a bit narrow to increase the average speed.
Technical side: To have this high ratio and maintain a high level of rigidity, essential to the control of the foil, it was necessary to use a unidirectional HIGH MODULE (UD) CARBON construction under press at 200 bars.
In short, this stabilizer will delight speed lovers who want to push their foil to its maximum capacity without losing all the advantages of an Alpinefoil foil (Stability, Accessibility, Performance...)
AlpineFoil offers this stabilizer in two versions: the 188 cm2 version and the 239 cm2 version, do not hesitate to call us to advise you on the surface to choose according to your rider profile
Alpinefoil +33 4 38 00 57 80
AlpineFoil stabilizers all use the same 16mm screw lengths - screws are not supplied with the stabilizers
