OZONE FUSION

Five years ago, we launched the FUSION project. The goal was to combine our manufacturing expertise with our knowledge of foil kite, inflatable kite, paraglider and wingsuit design.

Utilising all the resources of our in-house production facility, our designers collaborated closely with the most experienced technicians and material handlers to elevate aerodynamic performance to new heights for this world-first wing design

Availability: dispo sous 2 à 15 jours (Appelez nous 04 58 00 57 80)

1 669.00€ inc. tax

WORLD’S FIRST – FUSION HAS BEEN ACHIEVED!


RAM AIR TECHNOLOGY, 100% DOUBLE SURFACE, INTERNAL RIBS

INNOVATIVE AND UNIQUE FUSION DESIGN TECHNOLOGY

COMBINING OZONE’S MULTIFACETED AERODYNAMIC KNOWHOW

EXCEEDINGLY FAST AND DYNAMIC WITH INSANE RANGE

DEVELOPED FOR RIPPERS LOOKING TO TAKE IT TO THE NEXT LEVEL!

The new FUSION freeride wing marks a paradigm shift in performance. Tailored to riders seeking higher speeds, dynamic jump and flight potential along with previously impossible angles up and downwind.

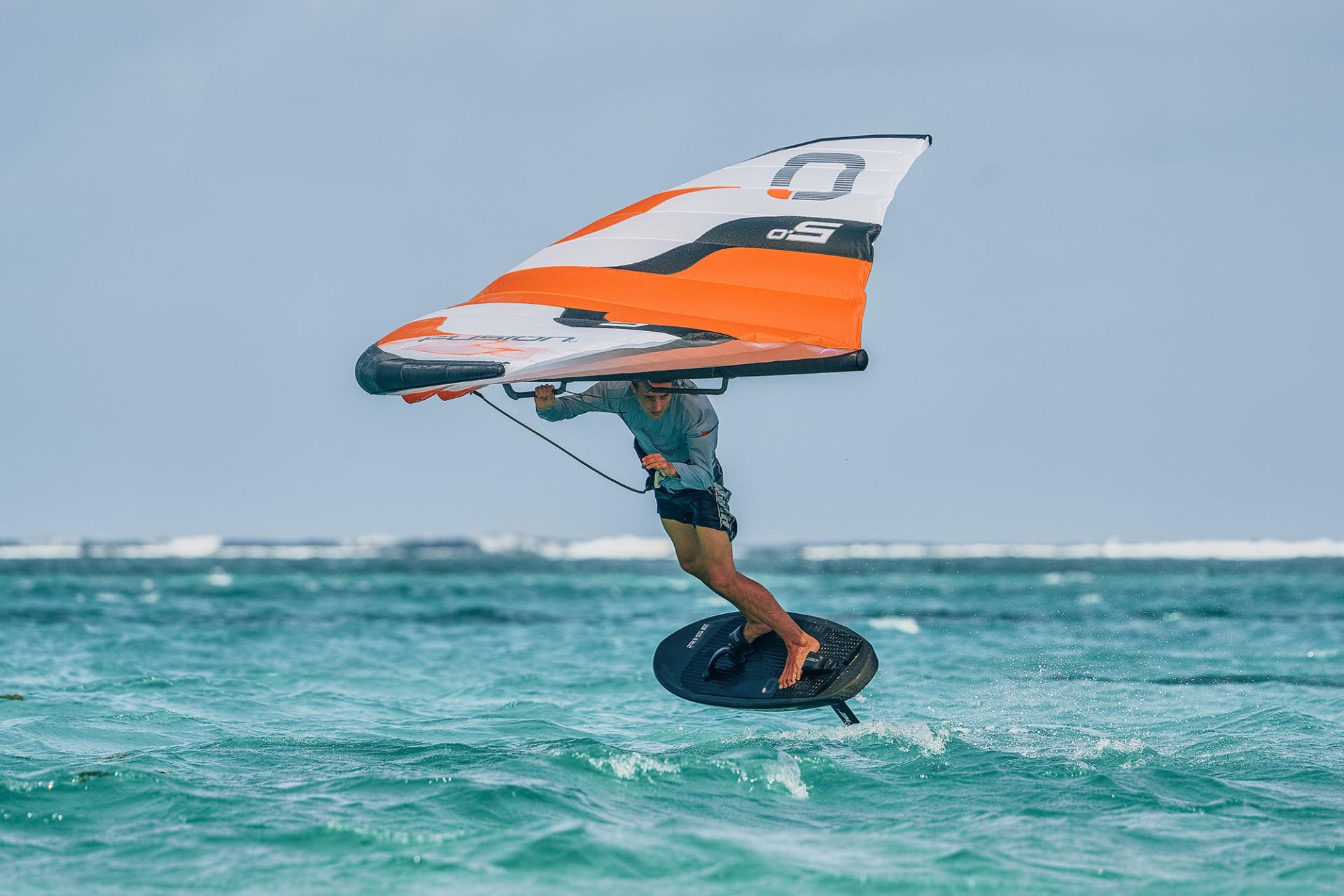

Fusion v1 action 10

WHAT YOU FEEL:



The superior efficiency of the 100% double surface design along with the culmination of all features on the Fusion wing elevate every element of the riding experience

Engaged flying feel – this is an aerofoil like nothing you’ve laid your hands on!

This wing is capable of exceptional upwind and downwind trajectories. As a result it provides unmatched racing performance

High speed translates into remarkable elevation and airtime that has to be experienced to be believed

The stiff airframe combined with the pressurised, no-flutter sail gives a smooth ride that’s further accentuated by the carbon handles

Super smooth power management that becomes more and more potent

While it’s more demanding to get going, especially in light wind conditions, the benefits of efficiency vastly outweigh the negatives

You’ll get faster. Due to the reduced drag the wing keeps delivering more power the faster you go

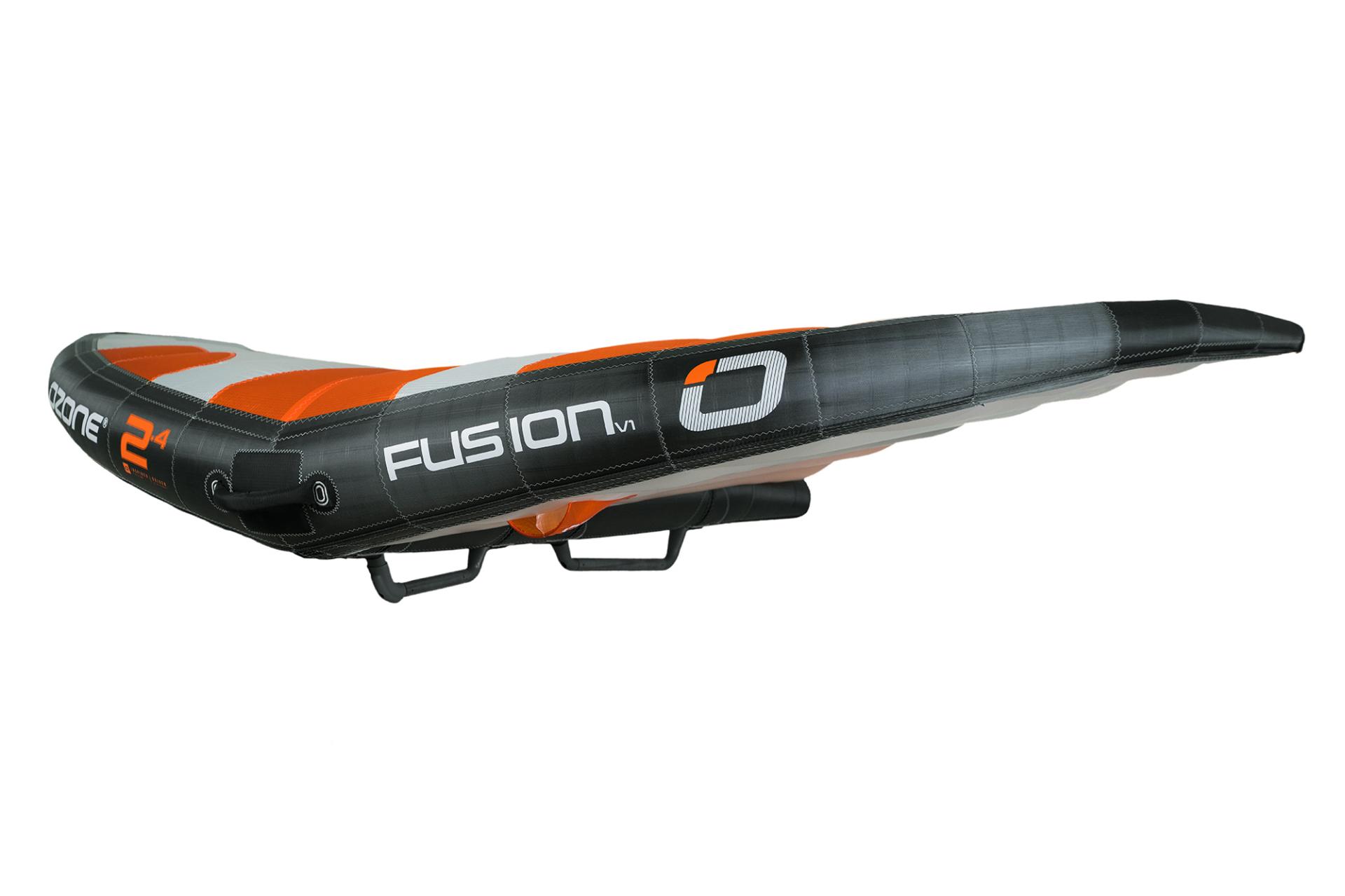

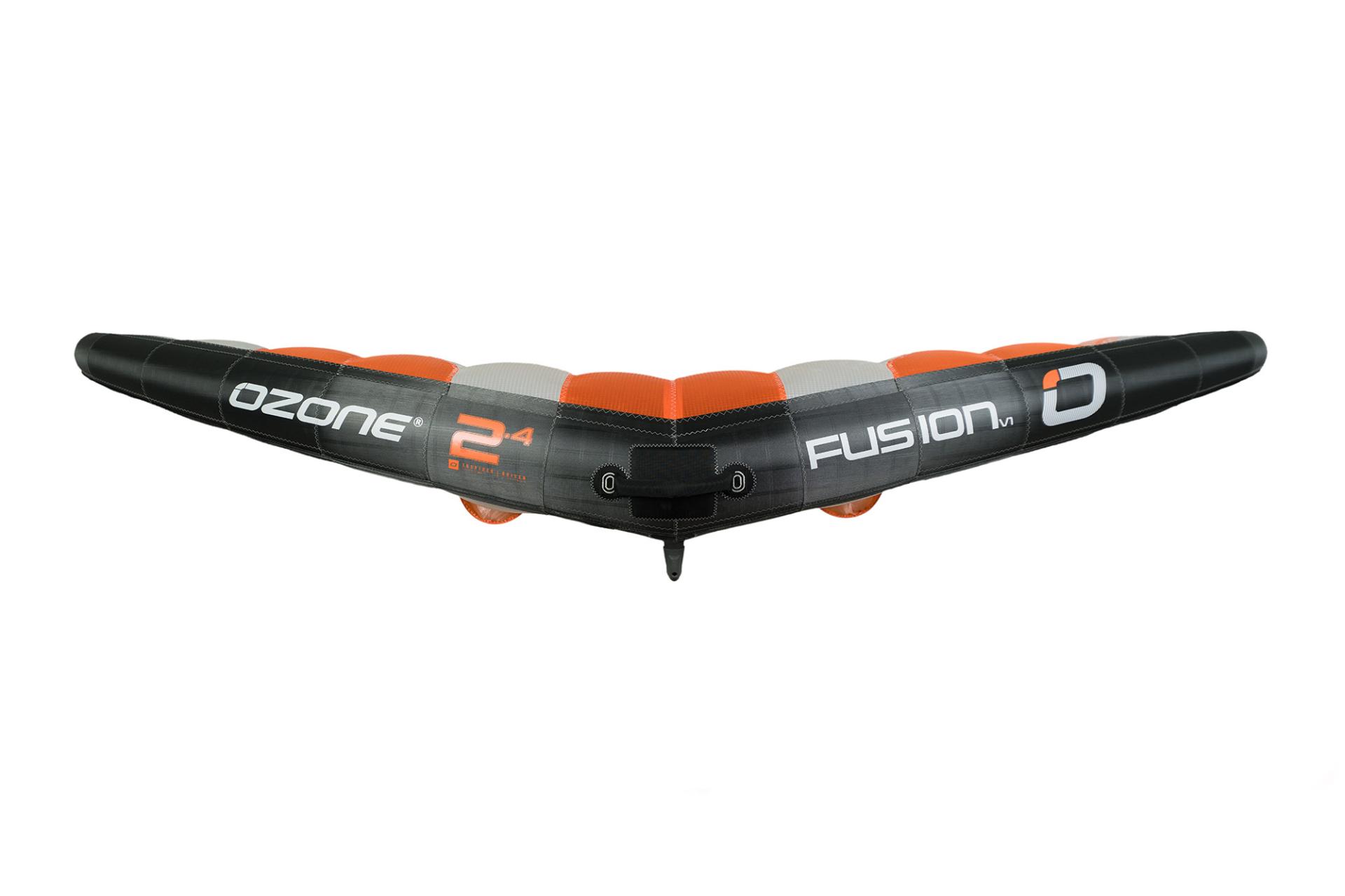

Fusion v1 studio 1

WHY YOU FEEL IT:



World first double surface design with internal ribs and ram air technology

High-aspect-ratio design with swept leading edge planform

Reduced drag due to additional entire lower surface with profile ribs sewn between both layers

Pre-loaded leading edge with optimised sail shaping for a tighter canopy

Reduced span in the larger sizes to keep wing tips from interfering with water surface

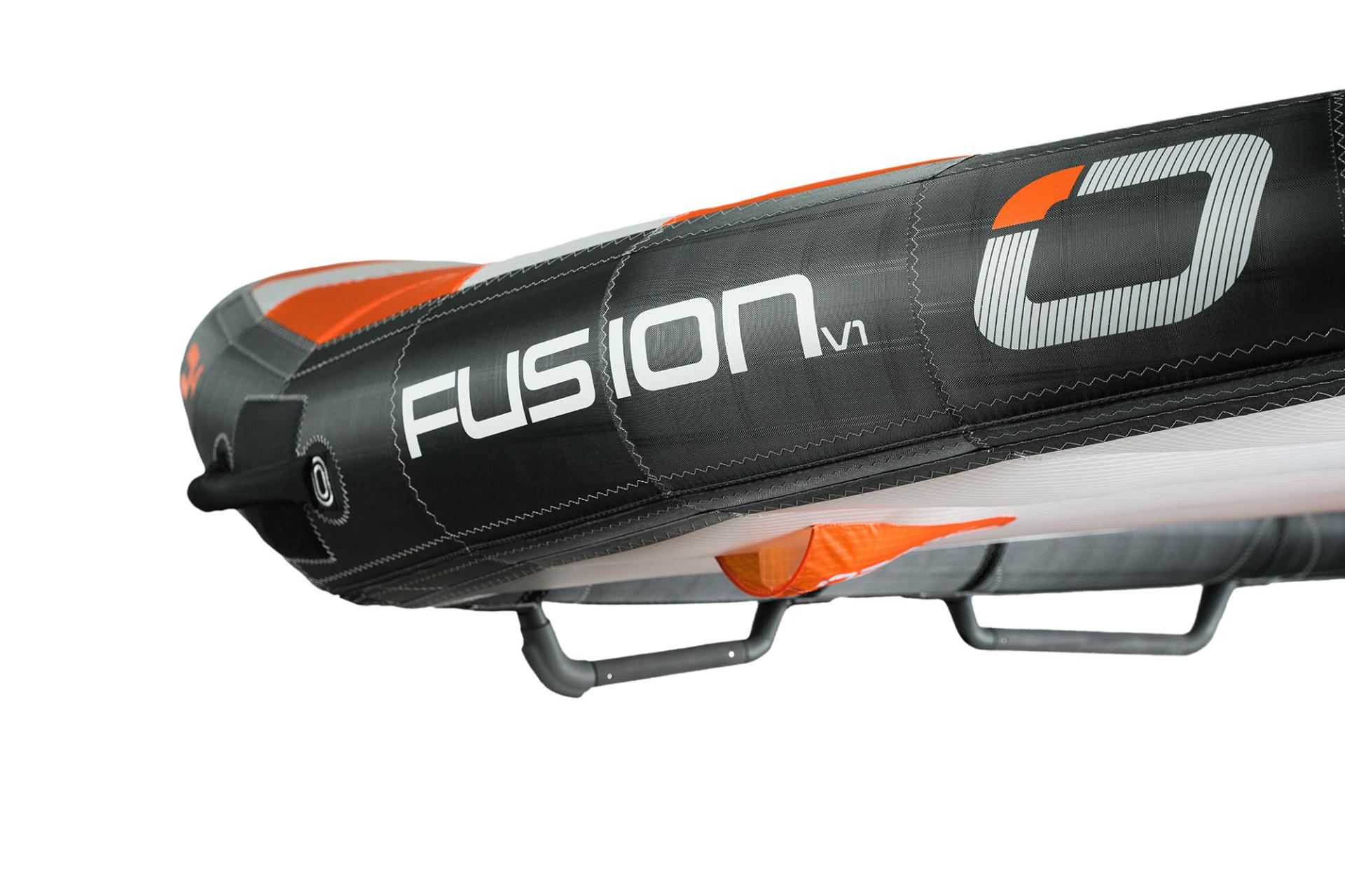

Ergonomically angled, rigid carbon handles with EVA grip

Soft bumper on front handle mount to protect your board and head

Knuckle-guard on leading edge with de-power handle

Fusion orange top plan 2

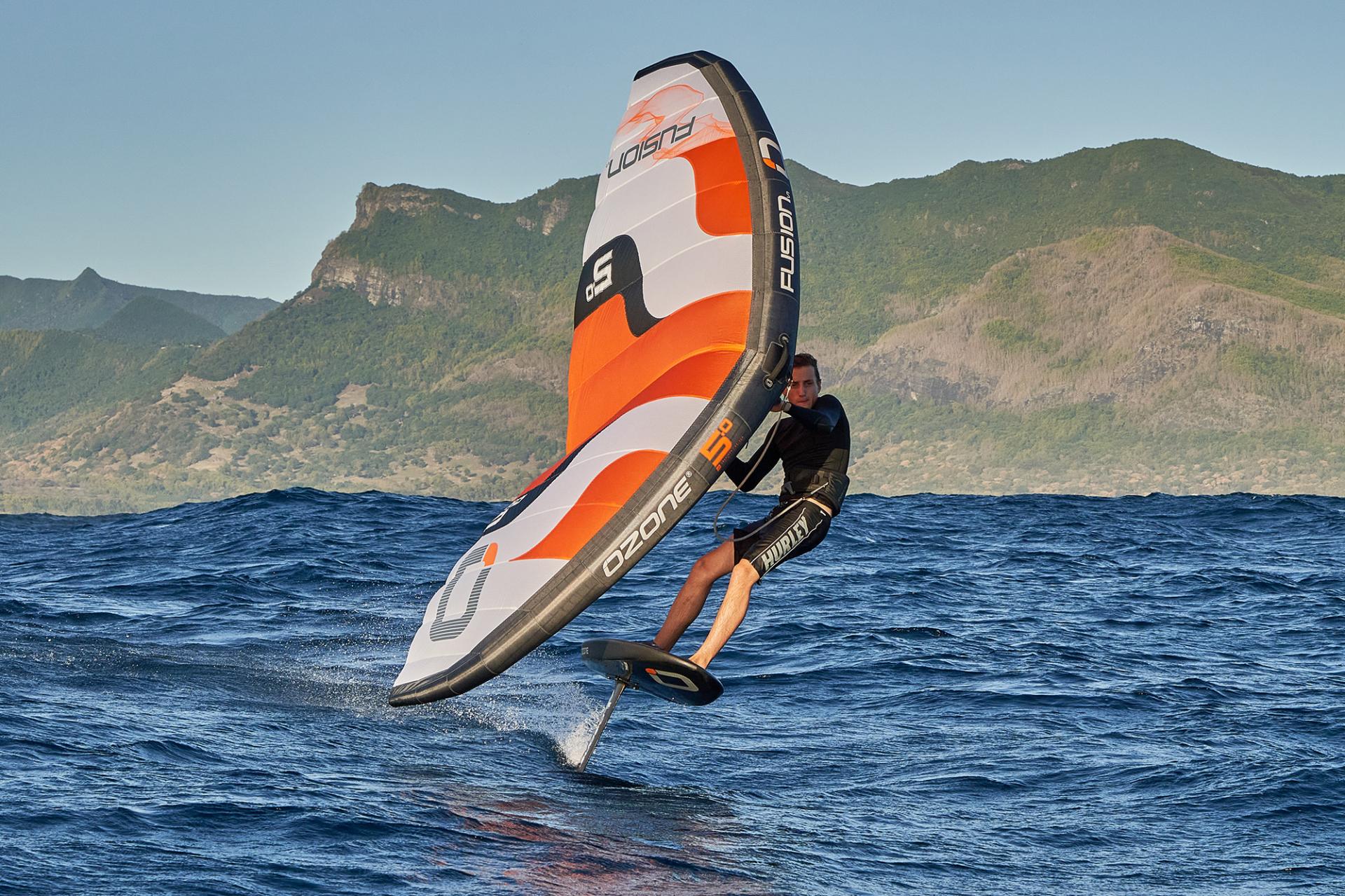

Fusion v1 action 5

CUTTING EDGE PERFORMANCE:



RAM AIR TECHNOLOGY, 100% DOUBLE SURFACE, INTERNAL RIBS

Our efforts for this project centred around optimal aerofoil design, leading us to the efficient, but difficult to achieve, double surface design. We were left exploring ways to overcome both the structural challenges and the manufacturing intricacies.

Initially, the primary task of being able to find an immediate sense of improved performance and usability remained difficult to deliver…

We remained committed and continued our work. Through innovative construction techniques and the “ram air” principles integral to wingsuits, we’ve achieved a design that presents the wing and kite sector with a revolutionary perspective.

BETWEEN THE SHEETS

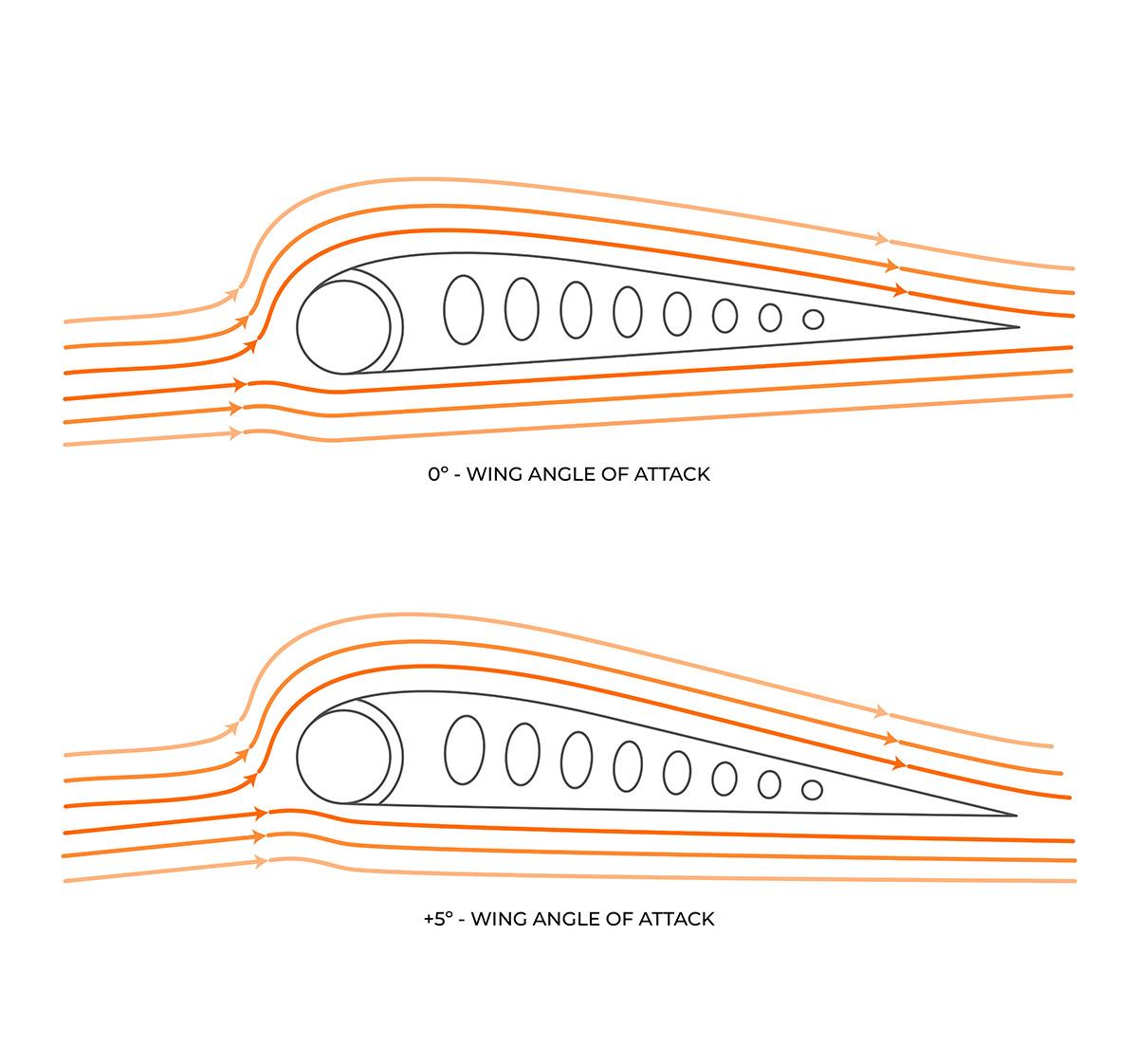

Fusion v1 angle of attack



The Fusion wing is designed around the high-performance planform of the Flux, including the pre-loaded leading edge, which is made with stiff performance dacron and experiences drastically less deformation in strong conditions.

The 100% double surface ram air design creates an enclosed high pressure space between the entire upper and lower surfaces. The internal rib structure supports both sail layers and helps the wing smoothly deal with dynamic pressure differentials when the wing’s angle-of-attack changes.

WHAT IS THE BIG ADVANTAGE OF THE DOUBLE SURFACE DESIGN?



A dramatic reduction in drag.

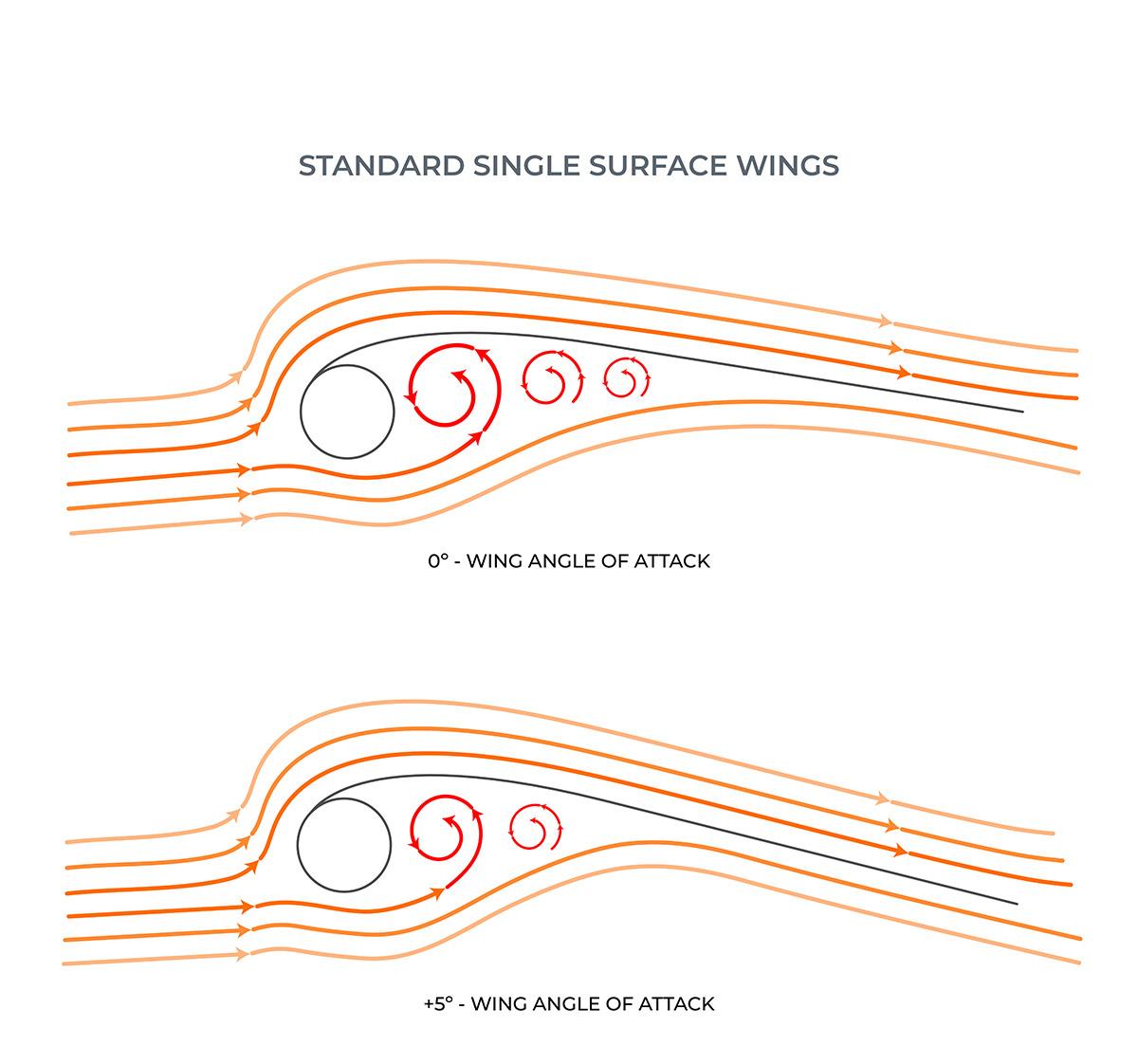

When the air travels over a wing it splits at the stagnation point on the leading edge. While the air that runs along the top surface has a clean and continuous surface to follow, the airflow on the bottom of a single surface wing creates vortices behind the leading edge. This turbulent underside flow creates drag which reduces performance.

Single surface airflow

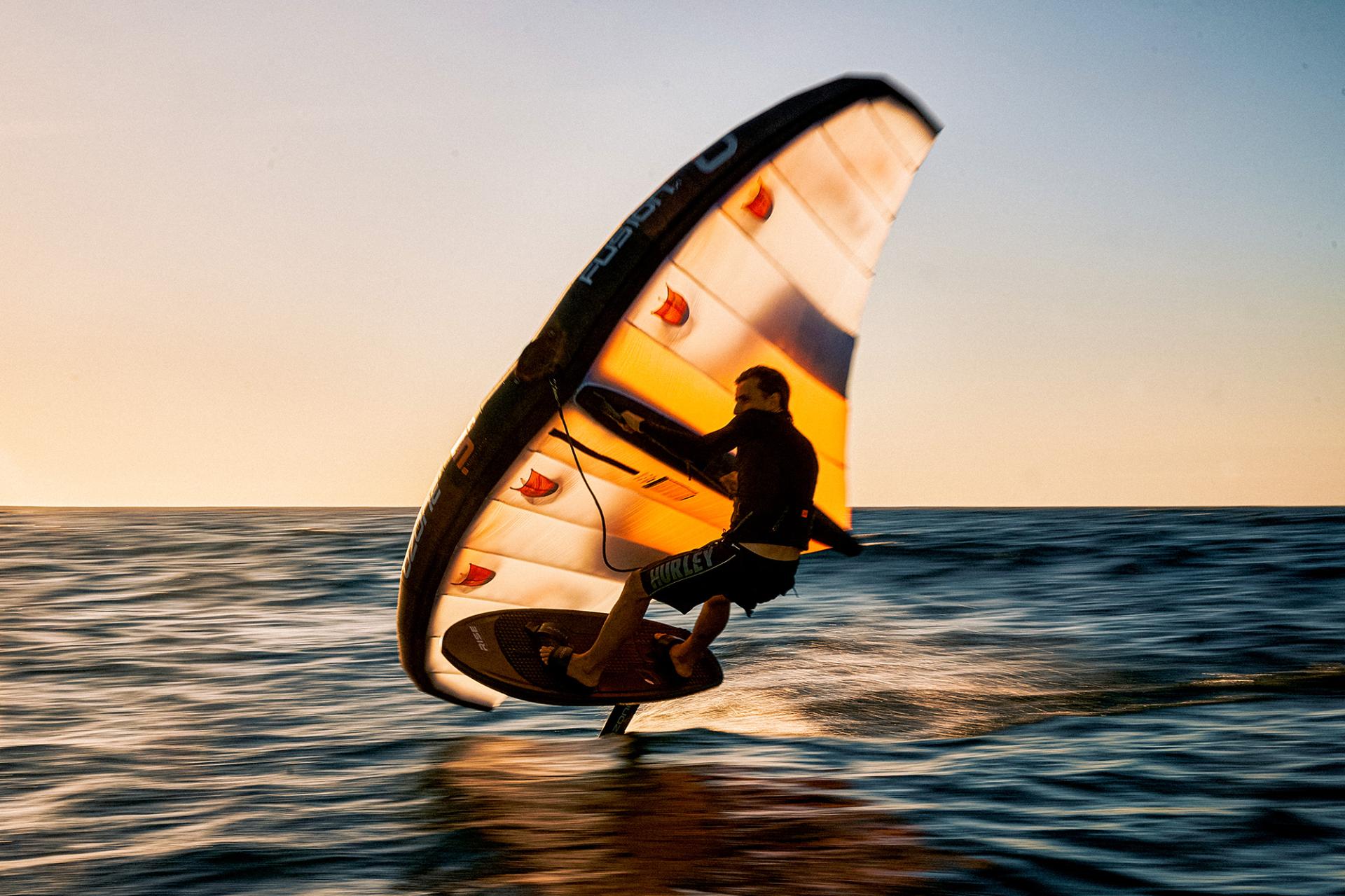

Fusion v1 action 1a

A HOT KNIFE THROUGH BUTTER



The Fusion’s design has unlocked enormous performance potential. Producing more lift, while reducing drag, means performance gains have moved in bigger steps and these improvements are revealed in far more areas than just locked-in, straight line speed.

By completely fairing the lower surface, designing a clean envelope structure and adding ram air intakes, the air pressure created internally helps the upper and lower surface retain positive pressure and tension over its entire area.

A well designed ram air envelope will naturally guard against luffing (the moment a canopy starts to flap) and helps support better load distribution throughout the entire sail. Utilising the dynamic pressure created by the aerofoil section, combined with ram air inflation, we have opened up a new world of untapped design potential.

Ozone’s experience developing efficient ram air structures meant that the design team had the background knowledge to push the Fusion, both in terms of performance potential and physical design.

The end result is unique; a beautifully crafted 100% double-surface wing with stunning performance, sublime design and manufacturing solutions throughout.



It feels like a hot knife through butter.



JOHNNY HEINEKEN, double kite racing world champion & Pacific Coast Wingfoil Champion 2023

THE FUSION IS FAST… THE FASTER YOU GO, THE MORE POWERFUL IT GETS. IT’S LIKE ACCESSING SUPERCHARGED PERFORMANCE

THE NEW REALM OF WINGFOILING:

CONTROL EVERY PART OF THE GAME

Light up every session with untold potential… This is the new realm of wingfoiling and it will keep you wanting more.

You can enjoy the Fusion on an intermediate, mid-size front foil wing, however the Fusion opens up freedom to play with smaller, faster foils and these are key to unlocking the wing’s real potential. As you tweak your foil set up to have less drag underwater, the more it will allow the Fusion’s supercharged handling and extreme airspeed capabilities to really shine.

With a greater feel for the energy at play, progressive riders will find the Fusion helps them to develop the instincts to squeeze ever increasing performance from their equipment and themselves.
