Wing - RSX 1260

The high-aspect wing that lifts early and glides on the smallest bumps.

1260 cm², 1251 mm span, AR 13
HR + HM carbon
Designed and built in our workshop in the French Alps

Monday - Thursday: 8am-12pm 2pm-7pm - Friday: 8am-12pm

+33 4 58 00 57 80 Info / Quote WhatsApp

Availability: In stock

889.00€ inc. tax

740.83€ excl. tax

alpinefoil WINDFOIL WING LIGHT WIND wingfoil CARBONE RS600 AlpineFoil WINDFOIL CARBONE LIGHT WIND WING wingfoil RS600

Foil front wing · Wingfoil · Downwind · Made in France

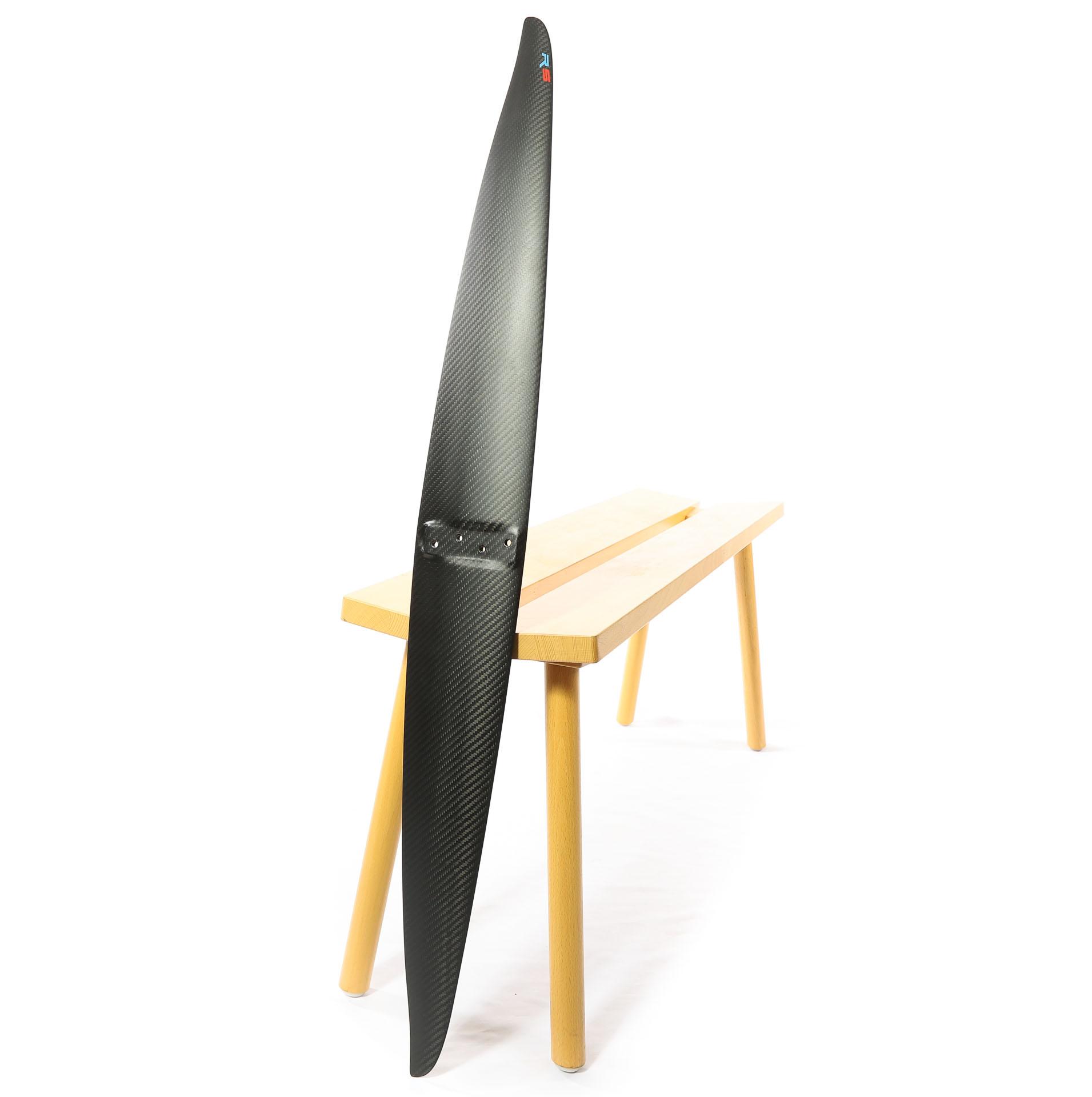

RSX 1260: early lift, glide on anything

A very high aspect ratio for glide, efficiency and speed. It lifts off early and keeps gliding on the smallest bumps.

1260 cm²surface

1251 mmspan

13aspect ratio

100%HR + HM carbon

Key features

Aspect ratio 13: glide, efficiency and speed
Early take-off and glide on micro-bumps
Surprising low end for its surface
Excellent handling despite the span
Big sister of the RSX 860

Ideal for

Most riders, even with little experience: wingfoil, windfoil, surf foil, SUP foil and downwind. Pumpfoiling is for experienced riders.

Designed and built in our workshop in the French AlpsEuropean Hexcel carbonIn-house engineering officeCompatible with the whole range since 2010Need advice? +33 6 73 19 37 23

RSX1260 Wing super High Aspect AR13 made in France

The new RSX1260 is the big sister of the RSX860, which represents a real revolution for Alpinefoil with its 13 aspect ratio.
it brings a new purity to the glide and exceptional glide for freefly.

It's one of the nicest surprises, as its performance exceeds our expectations. The RSX1060 is so easy to use and has an amazing low range for the surface. It takes off very early with an impressive glide, but above all, its handling is excellent despite its size.

The RSX1260 is accessible to most riders, even those with little experience.

It can be used in a wide range of disciplines: Wingfoil, Windfoil, Surf foil, SupFoil, Downwind and Pumpfoiling for experienced riders.

Alpinefoil, a French-made forward-compatible multidisciplinary design

In recent years, we've seen a real game-changer in foil sports. Nowadays, practitioners are multidisciplinary: they do wingfoiling, kitefoiling, windfoiling, downwind SUP foiling, and even pump foiling.

For this reason, Alpinefoil’s philosophy focuses on compatibility with all foils across all the disciplines of our brand. When we develop a new wing, we always take a cross-disciplinary approach. This means that the wings we design can be used for both wing foiling and other foil disciplines. Of course, they might be slightly more tailored to a specific discipline based on their characteristics, but fundamentally, everything is designed to ensure they perform well across various practices.

Moreover, all our wings are designed to be compatible with all the brand's stabilizers. The choice of stabilizer will depend solely on your preferences, skill level, and what you're looking for.

Designing foils: the impact of aspect ratio on performance!

What is the aspect ratio (elongation) of a foil wing?

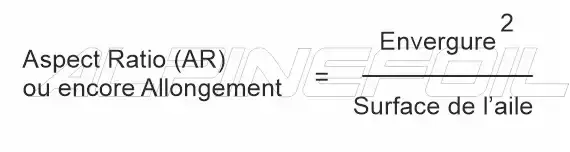

The aspect ratio, like the area or wingspan, is one of the key characteristics of an airplane wing or a foil wing.

The aspect ratio of a wing is a term used in aerodynamics and sail design to describe the relationship between the wingspan (the distance between the tips of the wings) and the wing area. It's calculated using the following formula:

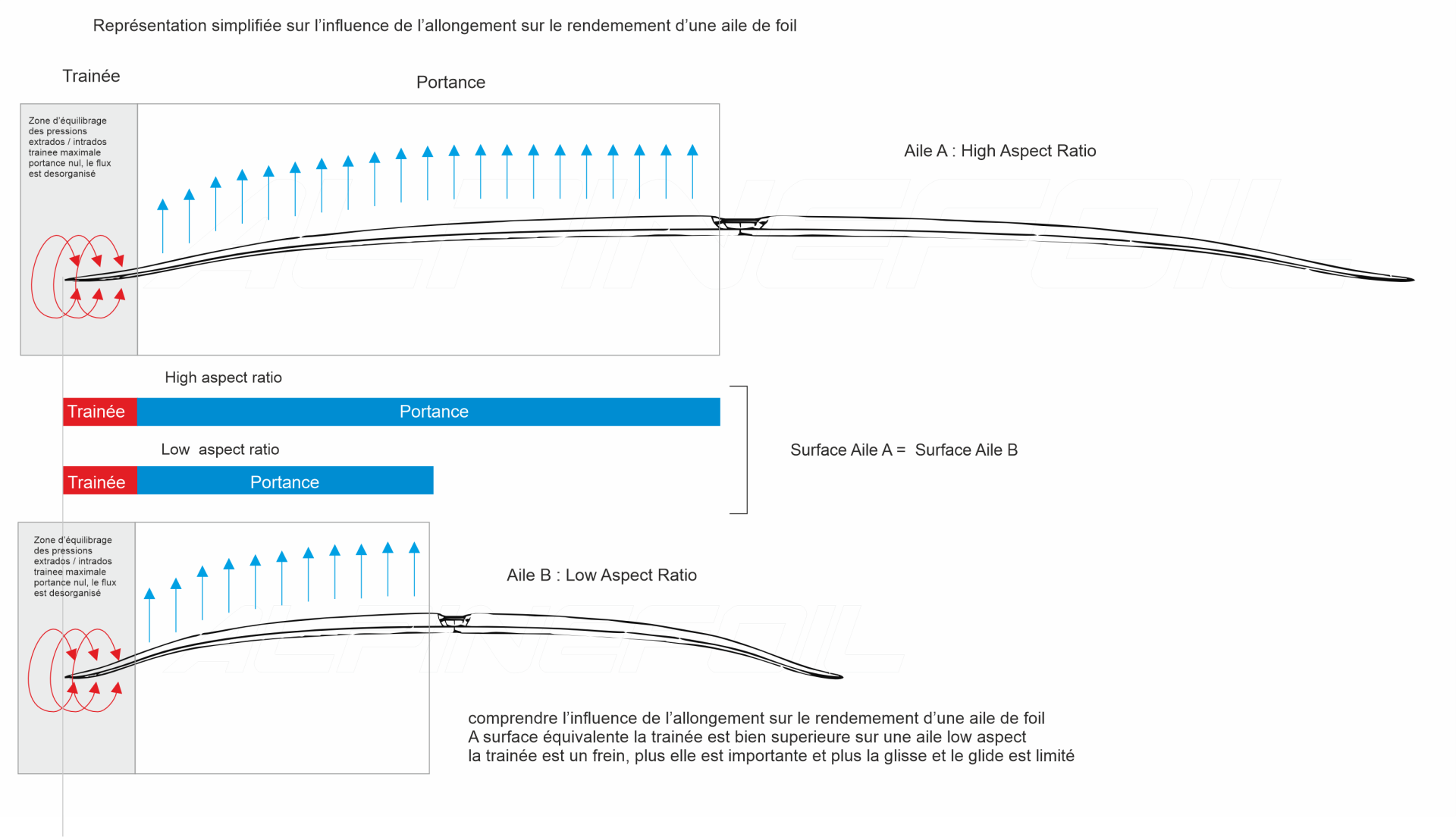

A high aspect ratio means that the wing is long and narrow, while a low aspect ratio indicates that the wing is shorter and wider.

Implications of the aspect ratio:

Performance: Wings with a high aspect ratio tend to provide better lift and reduced drag in the air/water, which can improve efficiency and speed.
Maneuverability: Wings with a lower aspect ratio are generally more maneuverable and responsive, which can be desirable in disciplines like freestyle or surfing.
Stability: A high aspect ratio can also contribute to better stability in flight, while a lower aspect ratio may make the wing more sensitive.
In summary, the aspect ratio is a key factor in wing design, affecting performance, maneuverability, and flight behavior.

Alpinefoil, the only foil manufacturer to keep backward compatibility of its wings across all disciplines!

We’re committed to not repeating the mistakes of the past, especially those we encountered during our windsurfing days. Over the years, some board brands have changed how their fins connect, forcing users to switch boards just to use the latest fin models.

When we started designing and manufacturing our foils, our top priority was to create a universal fuselage/wings connection system that could accommodate nearly any foil wing shape out there.

Thanks to this mindset we kicked off back in 2010, all wings designed since then are compatible with all our foils. This approach makes Alpinefoil the only brand to have adopted such a compatibility-saving strategy, ensuring that your investment won’t lose value due to compatibility issues. It’s worth mentioning that some used foils currently lose up to 90% of their value simply because the manufacturer didn’t maintain backward compatibility.

Reviews of the RSX1260 wing in wingfoil and downwind

The Reviews on the new Alpinefoil RSX860 AR13 foil wing

Banjoo Kaf

Wingfoil Rider

GAME CHANGER !! This RSX is a game changer! Glide ratio 13Glissssssssssse! A condor! Normally, I wait for quite a few sessions before giving feedback, but right from the second session, it was clear! I'm really surprised by how this wing glides; it opens up new horizons and sensations! The glide is incredibly enjoyable, like well-waxed skis or high-end roller skates! Its aspect ratio and slenderness might look intimidating at first, making you think it's going to be technical, but honestly, it's very easy to take off and pilot. There's no need to pump out of maneuvers; it just glides, glides, glides! Of course, it may turn a bit wider than a DW of the same size, but this RsX 840 takes off easily, just like the DW 980, and it glides way better, allowing you to enjoy every little bump to keep gliding! I was surprised because I was trying to pump much too early out of a slight slope, but with this RSX, you can double the glide distance of the DW 980 when you're downwind. Despite its relatively small chord, its profile allows for easy pumping. As for takeoff, I was expecting a bit of technique required, like with the RS 600... not at all, it's pretty progressive—take off by gaining speed or by pumping... easy. The most surprising part is the maneuvers; since it continues to glide for a long time, it feels effortless. Of course, I started pushing into carving, and I'm nowhere near exploring all its capabilities. Personally, I was a fan of the Regatta back in the day, and I was eagerly waiting for a high-aspect ratio wing with a modern profile... here we have a front wing that combines super glide, pumping capabilities, and downwind performance. I've used it in wind conditions ranging from 8 to 20 knots so far. I'm looking forward to the next few days of strong wind to let this Condor soar faster and further. EDIT: 30 knots at Nautique, midday break, heading upwind at a crazy angle, then descending in the swell faccccciiiiiiiiiiile.... I didn't want to stop! A CONDOR!

Thomas VDC

Wingfoil Rider

The winning trio?
Yesterday was the first test of the RSX 860 on the last day of the tram at the old new spot in 25 knots. It's not really its preferred terrain, but I like making adjustments there.

I started out with the 600 to send it a bit (I was stuck at 27 knots..........) and then switched to the RSX 860.

Usual adjustments for me with rake at 1.5 and stability shim at +0.7 on the HA 165 stab because I like to have support on the front foot.

After testing several mast positions, I ended up 0.5 cm forward from my reference for the RS600. At the same level as the DW840.

In summary: it's a 980 but better! It glides, it glides twice as far and reconnects the little bumps, goes at least as fast (24 knots peak yesterday) with a decent low-end and takeoff that’s almost as good. Once you start pumping, it doesn’t stop and it doesn’t even take much energy. The downwind and upwind performance are much better too. It’s really not an 860 in the traditional sense. It corresponds more to a 1000 with a lower ratio. So don’t be afraid of the smaller surface area. When it comes to maneuvers, it’s super easy. In turns, I’d say it’s different from the DW range. More about the glide and a bit less about support. It’s a true wing for upwind and downwind!

But is it the holy grail? The all-around wing? For my practice, no! I won’t be jumping with it! It’ll be more of a workhorse for messy bumps where you want to go up and down the spot, or for conditions with swells up to 1m to 1.5m. For bigger stuff, I’ll stick with the DW840, and to go fast, the RS600. They complement each other. I went from the trio of 600/750/980 to this new trio, and it’ll adapt to the day’s wants and conditions.

Thanks, Damien Chaboud, for these amazing toys!

Happy riding!

Aucune description de photo disponible.

William Papaz

Wingfoil Rider

A big kiss and some beautiful waves, yes, yes, gentle water waves, but with over 1.5 meters of depth in a short period, it creates some slopes!!

So, this is the heart of the RSX program!!!

After testing it the day before in light conditions, where it was already great on the cap, with jibes and tacks even better on the 95cm mast,

I can now really say, as a beginner in freefly, that this wing is absolutely amazing!!!!

I started with my usual settings all at zero and the same mast position at 4 meters with gusts of 20, 25, then 30 knots, and the conclusion was already clear: it starts pushing as soon as you engage in the wave, and it glides super well, it’s smooth. However, after an hour on the water, I went back to the shore to move the mast back 2cm, as Damien Chaboud recommends.

Back on the water, it was top-notch! I made some real descents and followed the pumping crests to catch the next wave, yes!! In short, a door has opened for me thanks to the RSX.

The best part is that there’s plenty of time for maneuvers and recovering the wing at the end of a free fly; it’s easy.

I still have a lot to learn, but I'm really happy with my purchase.

An important point is the remarkable stability. Kudos for this innovation, AlpineFoil.

Reviews of the new RSX860 Wingfoil and Pumpfoil

Banjoo Kaf

Wingfoil Rider

Tested the RSX 860 AlpineFoil in light wind and dock starting with Diego Roxer. Glide, glide, and more glide—13:1 ratio with super thin tips, it's super maneuverable and really picks up speed! It’s not a wing for jumping, but for gliding. Today, the wind was weaker than in the video: 8-12 knots, yet it still allows for smooth gliding and executing impossible turns, especially when the wind is usually that low! I had an 85 kg rider give it a try, and he was flying just as well. #wingfoil #wingfoiling #dockstart #surffoil #hydrofoil #alpinefoil #kitefoil Emeric Polin @banjookaf

Review of the RSX860 Wing in Windfoiling

Romuald Postic

Windfoil Rider

New RSX860 wing arrived this morning, so I’m trying it this afternoon. The wind is really inconsistent, between 8 and 13 knots. I'm going out with the 8m and it feels like it takes off almost as quickly as the Regatta 1100, but it accelerates as fast as the Regatta 850. The wing is super stable in jibes, though it does require a bit more speed than the 1100. I can’t wait to try it in stronger winds!

Peut être une image de 1 personne et texte

Review of the RX860 wing in Kitefoil

Frederic Artru

Kitefoil Rider

Testing the RSX860 with a kite

Tested with the Pocket Carbon 112, Rave Max mast, titanium fuselage, 165 stab. Slingshot UFO V3 in 10, 8, and 6m².

Spot: Oleron, Les 3 Pierres. Winds between 6 and 24 knots.

16 sessions and 600 km on the RSX860.

100% satisfied with this new kite that I've been lucky enough to have since the beginning of the month.

Ultra light wind: despite my weight of 84kg and the low volume of the pocket, I managed to ride in super light conditions at 7/8 knots. It’s always tricky to measure the wind, but I can say that none of my friends could go out despite using 12m kites, more conventional 1200 cm² foils, and boards that float better.

What’s impressive is that once you're up and going (not easy with a board that has no volume), the planing is surprisingly sustained! In lulls where the wind must have been around 5 knots, just pumping a bit gives power back to the kite thanks to the speed created. The same goes for the jibes: a kite loop, and even if you slow down a little, just pumping a bit on the foil tightens the lines again and regains power in the kite.

One constant: with the power generated in the kite (I should say speed, since it’s really not pressure on my feet), I have to go down one or two sizes in the kite.

At 12 knots, I easily manage with my 6m² UFO.

Behavior in stronger wind: tested up to 22/24 knots: no issues at all...

As for speed: very satisfied, it seems to glide better than the DW750.

Speed isn’t my specialty; I only have the data from my Suunto watch, and I'm not sure how reliable that measurement is.

The only speed data I have is an average over 1 km, and I clock in at an average of 18.6 knots. Choppy water, waves breaking, and a Slingshot UFO that isn’t a speed kite.

For comparison, I think my best time was in the RS600, and it might be about 1.5 knots faster.

So pretty satisfied with the RSX860 for a kite that works in ultra light conditions...

The question of maneuverability remains: quite surprised because I’m not hindered by the wingspan. Jibes are smooth, and I can pivot in a short radius (especially at low speed). One thing I can't fully explain is that during low-speed maneuvers, I sometimes feel like I'm "swaying" a bit from side to side, which requires some attention. It feels a bit like the long mast effect, but mainly because I'm going really slow and landing "straight" on the foil.

Conclusion: I've fully embraced this RSX860, and in the past month, I've only used the DW750 once in 4m², with 2.5m waves and over 25 knots (I only had two sessions on the RSX, and I didn't dare to test it in those conditions) and once on the RS600 for speed.

This RSX860 is an awesome kite!

Peut être une image de 1 personne et planche de surf

Suggestions

Stabilizer HA 175
- 3 ratings.
A high-performance stabilizer for more speed and agility. 175 cm², 385 mm span, high aspect...

369.00€ inc. tax
307.50€ excl. tax
Details
Stabilizer HA 165
- 37 ratings.
An agile, stable stabilizer designed for waves and speed. 165 cm², 350 mm span, RS2024 profile...

369.00€ inc. tax
307.50€ excl. tax
Details
Stabilizer HA 130

A versatile stabilizer that makes big wings more agile and faster.130 cm², 360 mm span, RS2024 profileFull...

369.00€ inc. tax
307.50€ excl. tax
Details
Stabilizer HA 101

A stabilizer that makes your foil livelier and tires you less.101 cm², 360 mm span, RS profileEasier...

369.00€ inc. tax
307.50€ excl. tax
Details
Pocket Pro carbon 98 x 45
- 6 ratings.
A light, versatile full-carbon pocket board, from dockstarts to kitefoiling.98 x 45, 1.5 kgOne-piece...

From
1 299.00€ inc. tax
1 082.50€ excl. tax
Details
V3 Carbon Mast 78 (us rail plate)

The short carbon mast of the V3 range, built for dockstart, downwind and surf.78 cm, Hawk V3 profile,...

From
1 270.00€ inc. tax
1 058.33€ excl. tax
Details

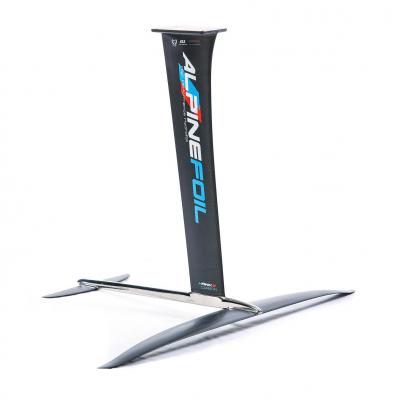

Wingfoil HAWK V3 carbon 78
- 2 ratings.
The Hawk V3 in 78 cm: nimble, stiff and precise.HR or HM carbon mast, US Rail plateAviation aluminium...

From
2 139.00€ inc. tax
1 782.50€ excl. tax
Details
Foil Pumping MODULAR ALU
- 1 rating
A slim, light aluminium pumpfoil to learn dockstarting without burning out. Polished 14.8 mm aluminium...

From
1 474.00€ inc. tax
1 228.33€ excl. tax
Details
Wingfoil sail - OZONE Fly V1

The Fly V1 is an Intermediate wing that is also perfectly accessible for those new to this sport. We...

From
999.00€ inc. tax
832.50€ excl. tax
Details
M6 M8 T-Nuts for foil with plate to board with US Rail
- 50 ratings.
IN STOCK T-Nuts M6 & M8 compatible for US Rail self-locking screws Quantity : x4 Compatible...

39.00€ inc. tax
32.50€ excl. tax
Details

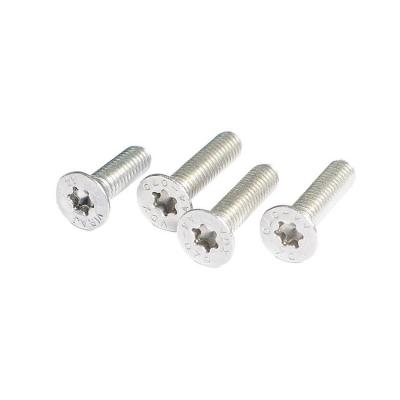

M6 screw set Spare wing 1x 20MM + 3 x 25 MM

M6 screw set Spare wing 20MM + 25 MM for Alpinefoil wings : DW 1680 DW 1370 Wave 1200 Cruise...

7.90€ inc. tax
6.58€ excl. tax
Details

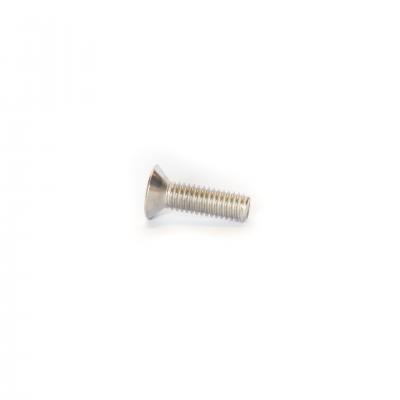

Screw 20 MM Inox A4 TORX Foil

Vis 20 mm Inox Forgé A4 Torx 30, spécial foil, made in Germany Prix 1.96 Euros HT ...

2.35€ inc. tax
1.96€ excl. tax
Details

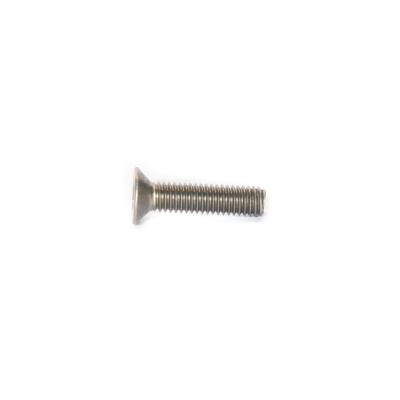

Screw 25 MM Inox A4 TORX Foil
